Selecting the right nozzle size often dictates your project's success. It means the difference between a factory-smooth finish and frustrating issues like orange peel or severe overspray. Clogs can also ruin your workflow mid-project. While traditional pneumatic and airless systems follow established sizing rules, a battery powered spray gun operates under strict limitations regarding CFM and sustained pressure. You cannot simply apply old pneumatic rules to new battery tech.
This guide breaks down how to match fluid viscosity to the correct cordless HVLP spray gun nozzle sizes. We factor in the specific airflow limits of a modern turbine. By understanding these dynamics, you ensure optimal atomization. You will learn to achieve flawless, repeatable results without draining your battery prematurely.
The Golden Rule of Sizing: Thinner materials require smaller nozzles (1.0mm–1.3mm); thicker materials demand larger nozzles (1.8mm–2.5mm+).
The Cordless Caveat: Pushing high-viscosity fluids (like unthinned latex) through large nozzles on a 20V HVLP spray gun rapidly depletes battery life and risks poor atomization; proper thinning is non-negotiable.
The Universal Sweet Spot: When in doubt for general medium-viscosity applications (like urethanes and primers), a 1.4mm nozzle offers the most reliable baseline performance.
Precision Trumps Guesswork: Utilizing a kitchen scale for repeatable thinning ratios guarantees consistent mil thickness across multi-battery projects.
Understanding how nozzles function relies on knowing industry measurement standards. Unlike high-pressure airless tips, HVLP sizing uses straightforward metrics. We must also understand how a low pressure paint sprayer manages fluid flow.
Airless sprayers use a three-digit code, such as "515," to denote fan width and orifice size. HVLP nozzle sizes take a simpler approach. They use millimeters (mm) to represent the actual diameter of the fluid opening. A 1.4mm nozzle features a fluid exit hole exactly 1.4 millimeters wide. This straightforward sizing allows users to easily visualize the volume of paint exiting the tool.
A nozzle never works alone. It forms part of a "fluid set," which includes both the nozzle itself and a matched fluid needle. The needle acts as a plug. When you pull the trigger, the needle retracts, allowing paint to flow through the nozzle orifice. Using mismatched components causes catastrophic issues. A small needle in a large nozzle causes leaking and spitting. Always ensure your components match. Look for systems featuring laser-etched sizing on both the needle and the tip for quick identification.
Cordless tools operate under strict power limits. A traditional plug-in turbine might deliver massive air volume (CFM). However, a battery-driven turbine caps this air volume output to preserve runtimes. Larger nozzles, such as 2.0mm models, allow significant fluid volumes to pass. If the cordless turbine lacks the CFM to properly break apart that high fluid volume, the result is heavy spatter. You must balance the fluid orifice size against the maximum airflow your specific tool can generate.
Choosing the correct setup depends entirely on the coating material. Different fluid viscosities require specific orifice diameters to atomize correctly.
| Coating Type | Viscosity Level | Target Nozzle Size | Primary Application |
|---|---|---|---|
| Stains, Clearcoats, Sealers | Thin | 1.0mm – 1.3mm | Woodworking, automotive clearcoats |
| Waterborne Enamels, Urethanes | Medium | 1.3mm – 1.5mm | Cabinetry, interior trim, furniture |
| Latex Paints, Heavy Primers | High | 1.8mm – 2.0mm | Walls, ceilings, exterior siding |
| Gelcoats, Block Fillers | Extreme | 2.0mm – 2.5mm+ | Marine repairs, industrial surfaces |
For materials resembling the consistency of water or light oil, you need strict flow control. The target size ranges from 1.0mm to 1.3mm. These sizes are ideal for varnishes, lacquers, and automotive clearcoats. A smaller opening provides ultra-fine atomization. It breaks down thin liquids into microscopic droplets. This fine mist prevents runs and sags on vertical surfaces.
Common Mistake: Spraying thin stains through a 1.8mm nozzle. The fluid will exit too quickly, flooding the surface and causing immediate dripping.
Modern interior renovations often rely on waterborne enamels. These materials require a target size between 1.3mm and 1.5mm. Industry professionals widely consider the 1.4mm nozzle the standard for general use. It excels at applying cabinetry finishes, interior trim, and doors requiring a fine finish. This size perfectly balances material flow with the limited pressure of a cordless paint sprayer. It yields a smooth, self-leveling finish while keeping overspray manageable.
Standard household paints represent a significant challenge for low-pressure systems. They require a target size of 1.8mm to 2.0mm. You will typically apply these on walls, ceilings, and exterior siding. Using these thick fluids requires careful thinning, often 10% or more. Attempting to spray unthinned latex through a 1.8mm orifice will result in a sputtering, heavily textured finish. The tool simply cannot shear the thick paint into a fine mist.
Best Practice: Always use a viscosity cup when prepping latex. Time the fluid runout to ensure it falls within the manufacturer's recommended seconds before loading it into the cup.
Industrial applications involve exceptionally heavy materials. Target sizes start at 2.0mm and can reach up to 3.5mm for metal-flake additions. These are common in marine repairs and heavy industrial priming. Most standard battery platforms will struggle heavily here. These applications severely tax cordless motors. They demand continuous high-amp draws that quickly overheat batteries. For large-scale gelcoat projects, you might need to rely on pneumatic or high-powered airless rigs instead.
Selecting the correct spray gun nozzle size only solves half the equation. Preparing the fluid correctly ensures the hardware performs as intended.
Achieving consistency across multiple batches of paint often frustrates users. Instead of relying purely on visual "runout" in a viscosity cup, use a digital kitchen scale. Measure your paint-to-thinner ratios by weight. For example, if your ideal thinned mixture requires 800 grams of paint and 80 grams of distilled water, record those numbers. This method ensures 100% repeatability. It guarantees consistent mil thickness across multi-battery projects, eliminating the guesswork of mixing subsequent batches.
Turbines generate friction. This friction produces warm air during operation, which travels through the hose and exits the air cap. This warm air accelerates drying times right at the fluid tip. In hot environments, this causes "tip-dry," where paint cures partially before hitting the surface, leading to clogs and a rough finish. To combat this, recommend using slower-drying thinners or retarders. These additives keep the paint "open" longer, preventing premature drying.
Debris ruins finishes. Even the perfectly sized orifice will clog instantly if dried paint flakes or dust enter the fluid stream. Filtration prevents this. Match your filters to the material you spray. Use fine 200-mesh filters for clearcoats and stains. Use medium 100-mesh filters for enamels. Rely on 60-mesh filters for thicker latex paints. Filtering takes two extra minutes but saves hours of tedious unclogging.
Every fluid set eventually wears out. As fluid continuously flows through the small metal orifice under pressure, it slowly widens the hole. Understanding material composition and wear patterns keeps your tool operating at peak efficiency.
Manufacturers construct nozzles from various metals. Brass represents the most common and accessible material. It resists corrosion well but wears down relatively quickly. Hardened stainless steel or tungsten carbide options offer significantly better durability. Pigmented primers and latex paints contain titanium dioxide, a highly abrasive mineral. Spraying these materials through a brass orifice rapidly degrades the precise internal geometry. Investing in stainless steel fluid sets ensures a longer lifespan and better sustained atomization.
Establish realistic baselines for part replacement. Nozzles do not last forever. An average brass nozzle spraying acrylic or latex will begin to lose its precise spray pattern after 15 to 40 gallons of material. For less abrasive oil-based materials or clear finishes, you can expect 35 to 60 gallons before noticing severe degradation. Track your material usage to anticipate when you need fresh hardware.
You must recognize when a nozzle needs replacing. Troubleshooting signs usually appear in the spray pattern. If the fan develops heavy "fingers" or thick bands at the top and bottom edges, the orifice has likely warped. Additionally, if you find yourself requiring higher fluid pressure to achieve the same surface coverage you previously achieved at lower settings, the nozzle is worn out. A worn orifice cannot distribute fluid evenly, forcing you to overcompensate with material flow.
Purchasing a new tool requires evaluating the complete ecosystem. You must ensure the hardware scales with your future project demands.

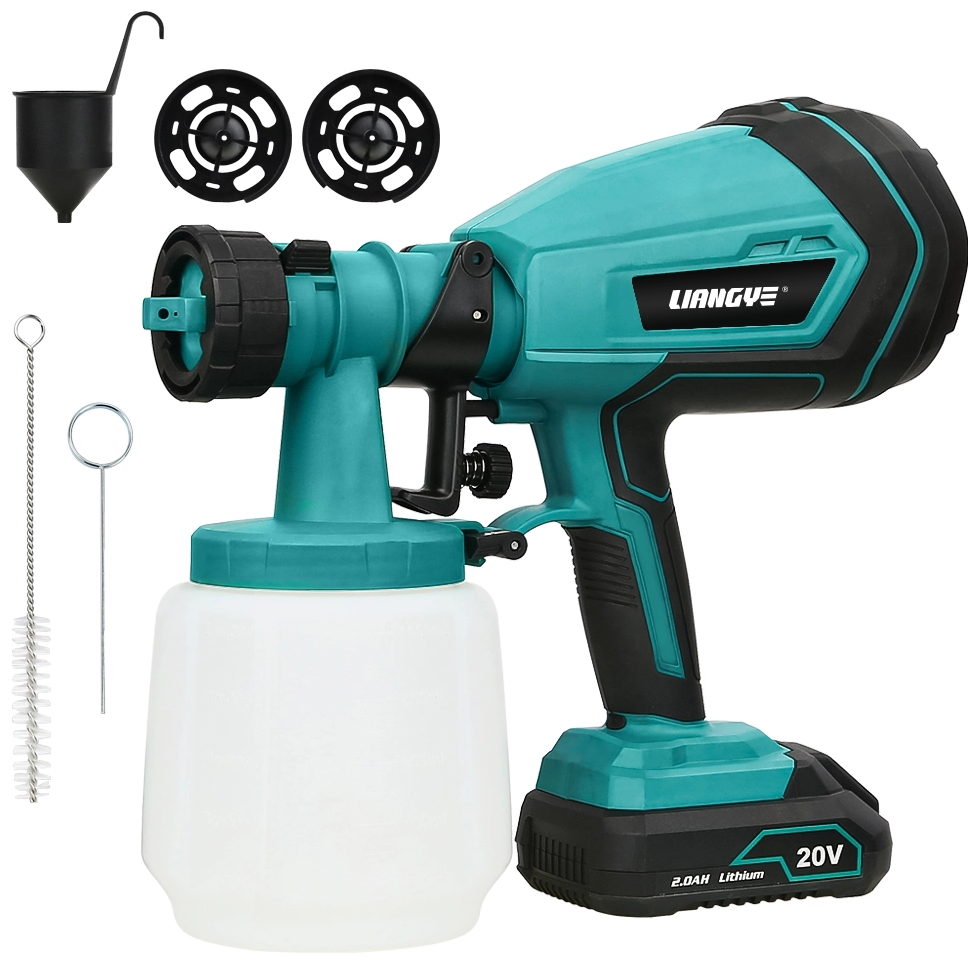

Assess Multi-Tip Availability: Prioritize brands that offer multi-tip kits. Finding a 20V HVLP spray gun packaged with 1.3mm, 1.8mm, and 2.5mm options provides massive flexibility. Fixed-nozzle models lock you into one type of coating. Scalability ensures your tool remains useful as your skills advance.
Evaluate Battery Ecosystem and Runtime: Match the Gallons Per Minute (GPM) flow rate of your desired fluid set to your battery capacity. A large 2.0mm setup pushes heavy material fast. It requires frequent trigger pulls and maximum turbine output. This heavy demand will drain a standard 4.0Ah battery up to 30% faster than a restrictive 1.2mm setup. Ensure you own high-capacity batteries (5.0Ah or greater) if you plan on spraying thick primers.
Maintenance Profile: Look for models featuring easily accessible fluid sets. Reversible tips or quick-clean needle assemblies minimize downtime on the job site. The easier a tool is to clean, the longer its internal components will last.
Success with a battery-powered painting system remains a balancing act. You must align coating viscosity, nozzle diameter, and the specific turbine capacity of your tool. Throwing thick paint through a tiny hole results in clogs. Forcing thin paint through a massive opening creates unmanageable drips. By respecting the CFM limitations of battery platforms and properly thinning your materials, you guarantee professional-grade results.
Before purchasing your next tool or fluid set, audit your primary application materials. Are you primarily finishing cabinetry with fine urethanes, or spraying exterior siding with heavy latex? Identify your most common material. Select a fluid set that explicitly matches that viscosity requirement. Implementing precise thinning methods like the kitchen scale technique will instantly elevate your finish quality across all your future projects.
A: Generally, no. Even with a large 2.0mm nozzle, the turbine power of a standard battery-powered unit is rarely sufficient to atomize unthinned latex without heavy sputtering. Thinning (often 10% or more) and utilizing a viscosity cup is required to achieve a smooth finish.
A: For HVLP systems, the 1.4mm nozzle is widely considered the universal "sweet spot." It is versatile enough to handle medium-viscosity basecoats, moderately thinned primers, and waterborne urethanes effectively.
A: If the fluid exits the gun as a dry, dusty mist, sputters inconsistently, or requires an excessive amount of thinner to flow at all, the orifice is too restrictive for the material's viscosity.
A: A nozzle that is too large for the fluid (e.g., spraying water-thin clearcoat through a 2.0mm tip) will result in excessive fluid delivery. This leads to immediate runs, sags, and wasted material due to uncontrollable overspray.
